SM92 Manual Grinder

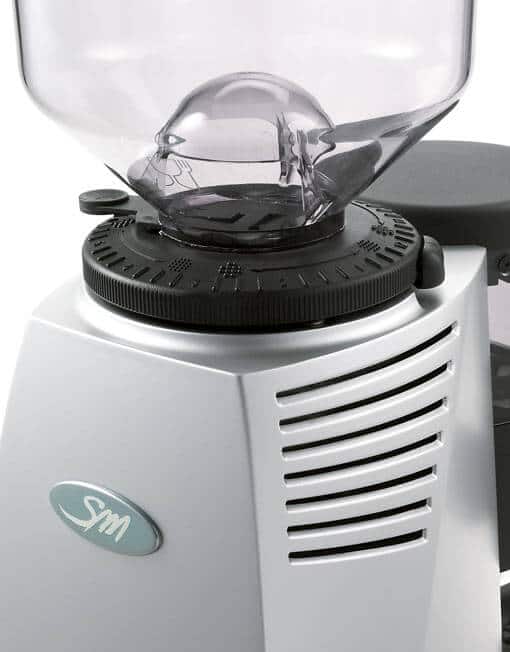

La San Marco SM92 Manual Coffee Grinder

Clear lines, cutting the space and creating inclined planes, are the main attractive aesthetic features of the series, which offers a wide range of technical and chromatic solution.64 mm flat blades with 1350 rpm motor.

Available in the manual version (SM 92) with the possibility of programming four different times of grinding
(30, 50, 80 or 120 seconds) and four different restarting settings (after 6, 12, 18 or 24 servings).

Technical Specifications

Weight and dimensions

• Height (hopper included): 570 mm.
• Width: 200 mm.
• Depth: 352 mm.
• Product weight: 13.8 kg.
• Bin storage capacity: 1.2 kg.
• Hourly output: 8.5 kg/h.

Doser

• Material: aluminium.
• Dosing measurement: external.
• Allowed dosing: from 5 gr to 9 gr.

Engine

• Traction: direct.
• Number of rounds: 1350 rpm.
• Power: 220 W.
• Feeding: single phase / three phase.
• Noise level: 72 dB.

Burrs

• Type: flat.
• Diameter: 64 mm.
• Material: hardened steel.
